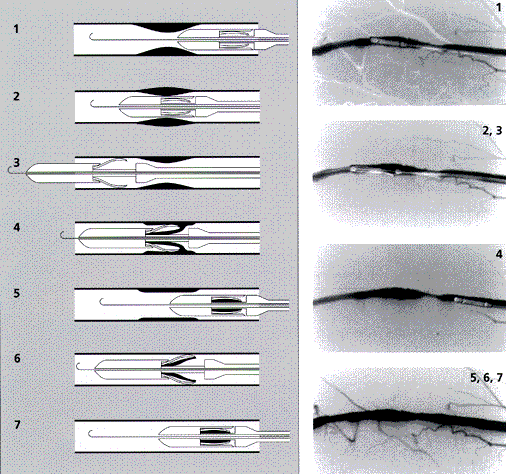

REDHA-CUT atherectomy device; Functional sequence. On the left hand side of the image you can see the simplified graph of the penetrating device, in the sequence of operation. On the right hand side the fluoroscopy images are shown, as seen by the doctor, in process of removing plaque, step-by-step.
By comparing images 1 to 4 and 5,6,7 on the right hand side one can see the effectiveness of the operation with this patented device.
